Description
Equivalent Replacement Controller for ABB / Hartmann & Braun Positioning Controller KE3 (KEVR)
Item offered is new.
Mannesmann
Schoppe & Faeser GmbH

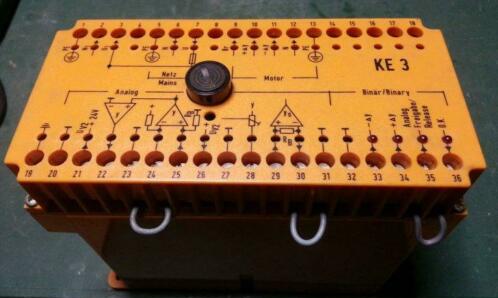

H&B KE3 positioning power electronic unit
variable speed drives
continuous power electronics for S&F servo motors
Type KE 3
42/68-805-3 XA
Some applications:
FOR BFP SCOOP TUBE
NAME; BOILER FEED PUMP POSITION
Positioning Power Electronics Unit KE 3 B
For Motor: M 163#M 1203 Mains: 245V
50/60 Hz INPUT: ANALOG SIGNAL:4-
20 MA,RE= 250 OHMS BINARY
SIGNAL:H-SIGNAL=BINARY
1=+24(+12V…35V)
BINARY SIGNAL:L-SIGNAL=BINARY
0=+0V(-2V…+5V) OUTPUT:
A.MOTOR:220VAC,MAX.APPR.400VA,MIN.
APPR.25VA
B.220VA.C:FOR SUPPLY OF FURTHER
UNITS LOAD MAX.100VA
C.24VD.C:FOR POSITION TRANSMITTER SUPPLY
D.BINARY:SIGNALING”UNIT READY FOR
OPERATION” H-SIGNAL=BINARY 1=+24V
(15.5V…33V) L-SIGNAL=BINARY
0=0V(0V…+3V)
OR OPEN OUTPUT LOAD MAX.10MA
Command from Controller to KE3: 4-20 mA
